Sample setting on Listener Client:
Port Forward Definition:
192.168.10.1,137,192.168.1.1,137,UDP
192.168.10.1,138,192.168.1.1,138,UDP
192.168.10.1,139,192.168.1.1,139,TCP
On Listener Client Advanced Settings, enable Bind Non Local Computer IP, select suitable network adapter.
Client common:
Server port = 2222, ip = YourDomain.com or Global Ip.
Where 192.168.10.1 (can be any non local address) is the ip address for File Explorer, and 192.168.1.1 is the ip address of true File Server. You cannot use 127.0.0.1 or local computer address (192.168.1.N) as the ip to connect by File Explorer. It will conflict with local computer file sharing.
If you use domain name as the Agent Server Ip, your laptop can connect to File Server both inside or outside the File Server network.
Why Magic Router for File Sharing ?
1. Improved Windows File Sharing Performance.
2. Faster database or text file transfer, at least 2 times faster.
3. set both send and recv buffer size to 64512 in client and agent server (+Auto Forwarder) or Forwarder Client, will increase file listing rate or file transfer rate.
4. Laptop through Magic Router connect to File Server, not like VPN, it will not affect laptop gateway or routing path.
5. Using domain name as Agent Server Ip , laptop can connect to file server inside or outside office.
6. Support open large (over 1G) MS Access mdb or very large foxpro dbf file (use command) over Internet.
7. Since File Explorer is connected to Magic Router Listener Client, always connected, network drive will not easily be broken.
8. Faster remote backup files from 1 computer to another computer.
limitation:
If Magic Router Listener Client is started for network drive mapping, File and Printer Sharing Service of local computer will be disabled.

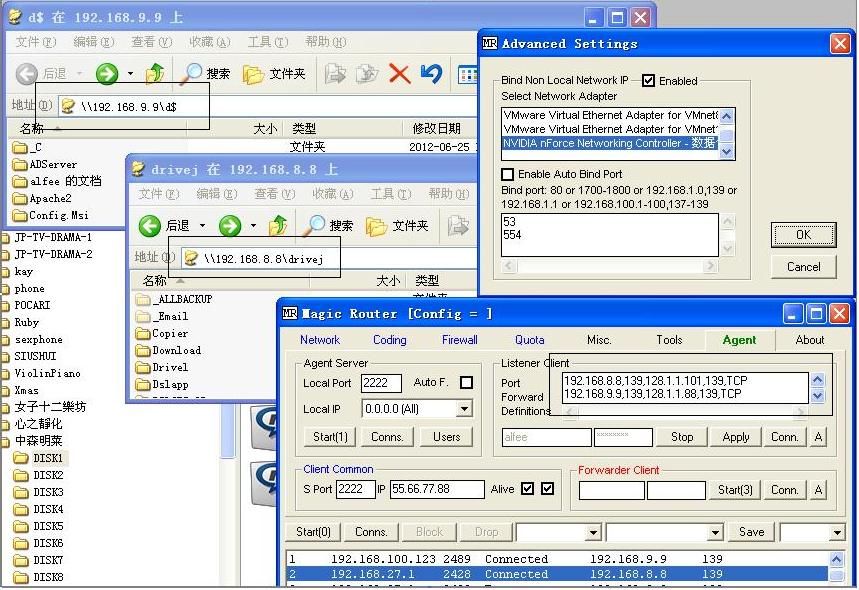

Sample Screen:

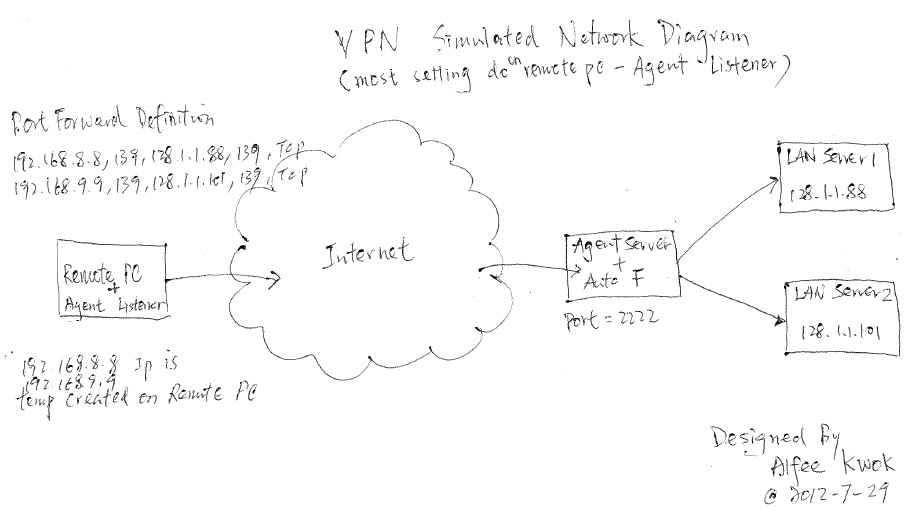

VPN Simulated Network Diagram:
If the remote PC locate outside or inside LAN, use the following PFD instead. If outside LAN, start Agent Listener. If inside LAN, no need to start Magic Router, direct use LAN to connect LAN server.
Sample Port Forward Definition:
128.1.1.88,139,128.1.1.88,139,TCP
128.1.1.101,139,128.1.1.101,139,TCP
128.1.1.88,21,128.1.1.88,21,FTP
* Remember to enable Bind Non Local Ip, run Magic Router with Administrator right.
